Frequency Range

1. HARRIS RT-1694 PRC-138 HF RECEIVER-TRANSMITTER Service. Elektrotanya.com DA: 16 PA: 50 MOZ Rank: 67. Download HARRIS RT-1694 PRC-138 HF RECEIVER-TRANSMITTER service manual & repair info for electronics experts; Service manuals, schematics, eproms for electrical technicians; This site helps you to save the Earth from electronic waste!
2. Product/Part Number RT-1796 HARRIS CORPORATION. Procurement: Invalid emails will appear to work, but in reality we will NOT receive them.
3. Ultratroc air dryer manual rt 1796 manual pediatric guide rt 1796 technical manual compiled pdf, doc, ppt hsc 7 software manual nsn: 5820-01-521-0291 (receiver-transmitter,radio-2001 rt 1796 harris user manual priority downloads us history sol rt 1796 prc manual tricia joy - triciajoy.com 14 an/prc-150 - wikipedia, the free encyclopedia.

• LOS – 30 MHz to 512 MHz, continuous
• VHF-LOW: 30 MHz – 89.99999 MHz (J5 Antenna Port)
• VHF-HIGH: 90 MHz – 224.99999 MHz (J8 Antenna Port)
• UHF: 225 MHz – 511.99999 MHz (J8 Antenna Port)
• SATCOM: RX: 243-270 MHz TX: 292-318 MHz (J8 Antenna Port)
• SINCGARS: 30 MHz – 87.975 MHz (J5 Antenna Port)
• HAVE QUICK I/II: 225 MHz – 399.975 MHz (J8 Antenna Port)

Modulation

• VHF-LOW:
• FM Voice (8 kHz, 6.5 kHz, and 5 kHz deviation)
• FSK Data
• TCM Data
• HPW LOS Data

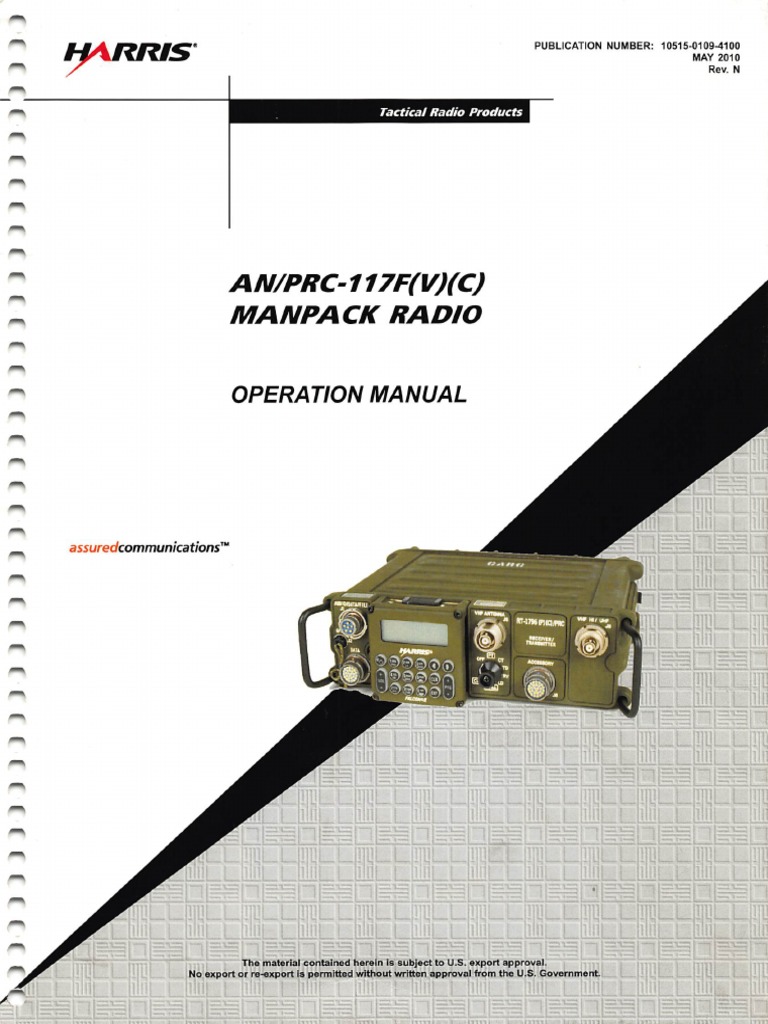

Download: AN/PRC-117F

The AN/PRC-117 Multiband Manpack Radio, or Multiband Multi Mission Radio (MBMMR), is a man-portable, tactical software-definedcombat-net radio, manufactured by Harris Corporation, in two different version:

• Version F (Foxtrot), namely AN/PRC-117F-MP Falcon II series, covering the 30-512 MHz frequency range, provided without internal GPS (optionally an external commercial GPS can be connected, or a GPS SAASM as a Precision Lightweight GPS Receiver [PLGR] or a Defense Advanced GPS Receiver [DAGR]);^[1]
• Version G (Golf), namely AN/PRC-117G-MP Falcon III series, covering the 30-2000 MHz frequency range, and provided with internal SAASM GPS (optionally an external commercial GPS can be connected).^[2]

Both radios have NSA certification for the transmission of voice and data traffic up to the Top Secret level.^[3]

The designation AN/PRC translates to 'Army Navy / Portable Radio Communications' used for two way Communications, according to Joint Electronics Type Designation System guidelines. The radios are also provided in a vehicular configuration under the AN/VRC-103 nomenclature.

Users[edit]

The AN/PRC-117F/G radio is currently in use with the United States NavySeabee and EOD teams in their MRAP and JERRV vehicles.^[1] The radio is also in use by the United States Marine Corps,^[4]United States Army,^[5]USSOCOM,^[6] United States Coast Guard, United States Air Force,^[7]Royal Air Force,^[8] Dutch Army, Spanish Air Force, British Army, Norwegian Armed Forces, Danish Army, Croatian Army^[9]Canadian Forces in Afghanistan and German Armed Forces.^[10]

The radio is part of an Over-the-horizon Satellite Communications and Improved Dual Command and Control Console system recognized by the US Army as a Top 10 Invention in 2005.^[11]

The radio has also been embedded in remote mine hunting systems for the US Navy.^[12]

Rt 1796 Prc

Specifications[edit]

General[edit]

• Frequency Range: 30 MHz to 2 GHz
• Presets: 100 (110 including DAMA)
• Transmission Modes: FM, AM, PSK, CPM
• Tuning Resolution: 10 Hz
• Model: RT-1796 (P)(C)/U

Transmitter[edit]

• Output Power: 1 W to 20 W (Max)
• Harmonic Suppression: –40 dBc
• Frequency Stability: +/- 1.0 ppm

Receiver[edit]

• FM Sensitivity -118 dBm (10 dB SINAD)
• Adjacent Channel Rejection 60 dB

Interoperability[edit]

• Fill devices: AN/CYZ-10 DTD, AN/PYQ-10 SKL (Supports DS-101, DS-102 and Mode 2/3)
• Crypto Modes KY-57, ANDVT/KYV-5, KG-84C, FASCINATOR
• Radios
  • AN/PRC-119A/B/G
  • Other versions of the AN/PRC-117

An Prc 117f Technical Manual

Interfaces[edit]

Harris Rt 1796 Manual Free

• External Data: RS-232, MIL-STD-188-114A
• Remote control: RS-232, RS-422
• Antenna ports: Separate VHF, VHF-HI/UHF
• Audio: Six-pin Standard
• Power: Two BA-5590, BB-390A/U, BB-2590, or BB-590 batteries

Physical Dimensions[edit]

• 3.7H x 7.4W x 8.8D in. (w/o battery case)
• Weight 8.2 lbs (without batteries)

12 lbs with batteries

Environmental[edit]

• Temperature: -40 °C to 70 °C
• Immersion: 1 Meter
• Test Method: MIL-STD-810E
• Finish: CARCGreen

Key Features[edit]

• Removable keypad display unit
• Full numeric keypad
• NVG compatible display
• External GPS - DAGR, PLGR, and NMEA 0183 compatible

Waveforms[edit]

Line of Sight[edit]

• VHF/UHFAM/FM
• HAVE QUICK II ECCM
• ANW2 - Advanced Networking Wideband Waveform (Harris)
• SRW Soldier Radio Waveform ^[13]
• NATO SATURN waveform, per NATO STANAG 4372 - optional ^[13]

SATCOM[edit]

• MIL-STD-188-181-B/C
• MIL-STD-188-182-A
• MIL-STD-188-183-A/B
• High performance waveform (HPW) optional
• Mobile User Objective System (MUOS) - optional^[13]

See also[edit]

Rt 1796 P C Prc

References[edit]

1. ^ ^ab'U.S. Navy Awards Harris Corporation $16 Million Contract for Falcon II and Falcon III Radios'. Archived from the original on 2011-07-24. Retrieved 2007-05-22.
2. ^[1]
3. ^Harris Corporation Receives NSA and DAMA Certification for Falcon II Multiband/Multimission Radios
4. ^Harris Corporation Awarded Potential $205 Million Contract For U.S. Marine Corps MBMMR Radio Standardization Program
5. ^Harris Corporation Awarded $46 Million Contract from the U.S. Army for Falcon II AN/PRC-117F(C) Multiband Multimission Radios
6. ^NDM Article - Joint Tactical Radio Expected To Meet Special-Warfare NeedsArchived September 27, 2007, at the Wayback Machine
7. ^NDM Article - Air-Strike Coordinators Need Lighter EquipmentArchived 2008-06-07 at the Wayback Machine
8. ^https://www.raf.mod.uk/equipment/portable-radio-communication-prc.cfmArchived 2017-04-25 at the Wayback Machine Portable Radio Communication PRC
9. ^http://www.hrvatski-vojnik.hr/
10. ^DND/CF Backgrounder- Army Equipment for Operation ARCHERArchived April 30, 2009, at the Wayback Machine
11. ^US Army Awards for Top 10 Inventions of 2005
12. ^NDM Article - Navy Mine Hunting System Gets Long-Range Data LinkArchived September 27, 2007, at the Wayback Machine
13. ^ ^abchttps://www.harris.com/sites/default/files/downloads/solutions/an-prc-117g-multiband-networking-manpack-radio-datasheet.pdf

External links[edit]

• Media related to PRC-117 at Wikimedia Commons
